Quick Details

  • Type: Evacuated Tube
  • Pressure: Pressurized
  • Circulation Type: Indirect / Closed Loop (Active)
  • Heating System: Batch / ICS (Passive)
  • Connection Type: Vacuum tube
  • Installation: Freestanding
  • Housing Material: Galvanized steel/PVDF
  • Certification: CE, RoHS, Solar KeyMark,ISO9001
  • Capacity: 200
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNWE & OEM
  • Model Number: P01-1800/58-20
  • Application: Washing,Bathing,Supply hot water.
  • Model type: Evacuated tube solar water heater
  • Inner tank: SUS304/ 2B food grade class
  • Bracket: Galvanized steel / Aluminium alloy
  • Colour: Black,Blue,Yellow,White,Green,Red and Others

Packaging & Delivery

Packaging Details Pre-assembling packing with Export standard CARTON
Vacuum Tubes is plywood box for sample package.
Delivery Time 10-15 days

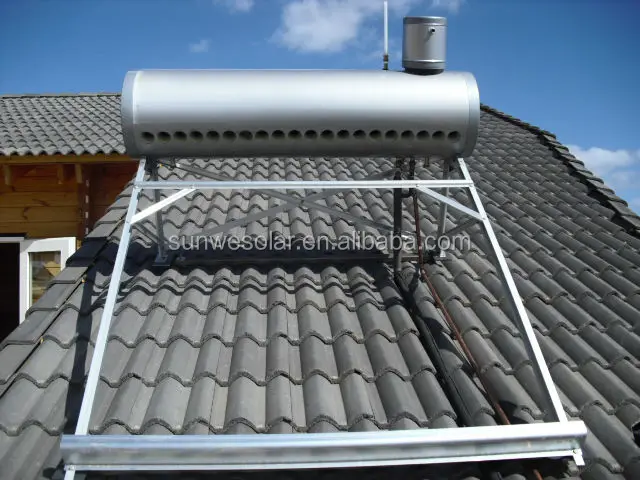

SunWe Pre-heating solar water heater provide mains pressure via high efficiency copper coil heat exchanger located within tank



1. Copper coil solar water heater specification

Vacuum tubes

Tank Capacity
(L)

Loading Qty

(sets)

Model

No

Dia.(mm)–Len(m)

Main tank

Assistant tank

20’GP

40’HQ

P01-58/1800/20

20

58-1800

200

5L

36

93

P01-58/1800/25

24

58-1800

240

Material is same as main tank

30

77

P01-58/1800/30

30

58-1800

300

24

62

P01-58/1800/36

36

58-1800

360

20

51

Electrical heater

220V, 1.5KW /2KW

Price Term

FOB ShanghaiChina

Terms of Payment

30% T/T in advance, balance 70% after the reception of copy of B/L

Delivery Time

10-15 days after receipt of deposit

Package

FCL

Packed in cartons with foam in it

LCL/Samples

Special package: Packed in cartons with foam in it first, then to wooden cases





2. Material

Inner tank

Stainless Steel 304 2B

Outer tank

Galvanized Steel / PVDF

Vacuum tube

High Borosilicate 3.3 Glass Three Target

insulation:

Polyurethane Foam

Coil

Copper Dia.12mm,thickness 0.8mm

Frame

coated galvanized steel



3. Advantages:

1. Use the copper coil as the heat exchanger, it is the international development trend, it is simple to install and use.
2. It takes the advantage of the tap water’s pressure, bring a high pressure hot water flow out.
3. It can produce hot water with constant temperature, safe and comfortable to use.
4. The water can be heated rapidly, so it can produce the high temperature hot water.
5. It can produce more hot water than the general types because it isn’t restricted by the volume of the tank.

6. With the assistant tank, cold water feeding automatically.

7. The water you actually using is the water in the copper coil. It ensures fresh water for shower.



4. Working principles:

Sunwe copper coil Preheated solar water heater provide mains pressure via a high efficiency copper coil heat exchanger which located within the tank.



1. For water in the main tank, principle is the same as the non-pressure solar collector:

All-glass evacuated tubes absorb and transfer sun energy into heat energy, then heat water inside vacuum tubes. Depend on the different density between the hot water and cold water; a cycle can be created in the tube which hot water ascending and cold water descending status. Keeping natural circulation like this, the water in the tank becomes hotter and hotter.



2. for water in the copper coil:

When cold water flows through the coil it absorbs heat from the water inside the pre-heating tank. And the water we actually use is the water in the copper coil, it means it is the fresh water (there is no pollution in the water).







REMARK:

SUNWE SOLAR, the leading solar water heater manufacturer in CHINA,
With high quality and competitive price under standards of: SOLAR KEYMARK/EN-12975, and CE &ISO.
